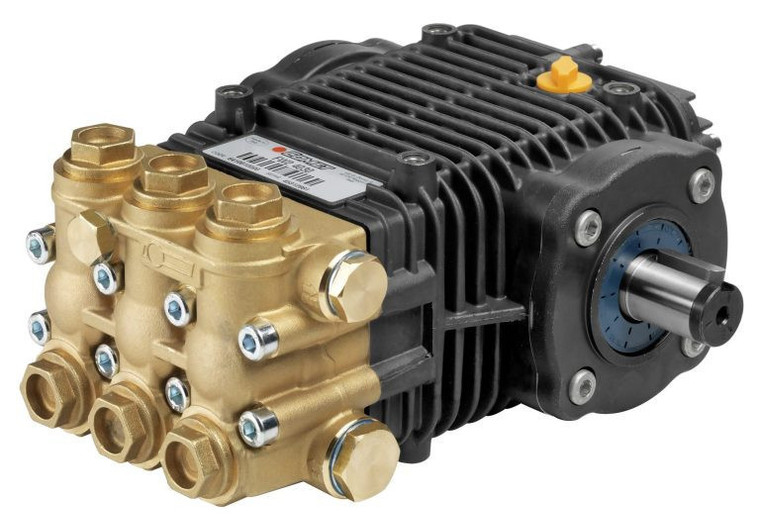

3000 PSI - 18.8 LPM COMET High Pressure Triplex Pump – FW2 Series – Solid, 24 mm Shaft

3000 PSI - 18.8 LPM COMET High Pressure Triplex Pump – FW2 Series – Solid, 24 mm Shaft

SKU:
210 FW25030S ASSY
Availability:
Usually Ships within 1-2 Business Days
$1,532.95 (Inc. GST)
$1,333.00 (Ex. GST)
Weight:
9.00 KGS
Current Stock:
Description

18.8 L/min @ 3000 PSI
1450 RPM
10 HP, 8.8 KG

Features

  • Brass Head
  • Reversible Crankcase for Right or left Hand Mounting
  • Hardened Stainless Steel piston Guides Highly Efficient Stainless Steel Check Valves
  • Solid Ceramic Plungers
  • High & Low Pressure Seals: High Quality Buna-Textile Packings
  • Additional Anti-Extrusion Ring under the Seal
  • Solid Brass Manifolds
  • Special Forged Brass Oversized Connecting Rods
  • Die-Cast, Anodized Aluminum Crankcase
  • Highly Quality Tapered Roller Bearings
  • Optimal Oil Bath for High Speed Operation
  • S 24mm Solid Shaft for Belt Drive, Gearbox or Flex Couplers
  • Nickel plated head available on request
  • Standard versions with p.t.o on right hand side, left side on request.

Specifications

  • Comet Model: 6410 0300
  • Shaft: Solid, 24 mm
  • Speed: 1450 RPM
  • Flow: 18.8 L/min – 5 GPM
  • Pressure: 3000 PSI – 207 BAR – 20.7 Mpa
  • Power: 10 HP – 7.5 kW
  • Weight: 8.8 KG – 19.4 lbs
  • Inlet: 1/2″ BSP Female
  • Outlet: 3/8″ BSP Female
  • Head Material: Brass
  • Pump Type: Triplex
