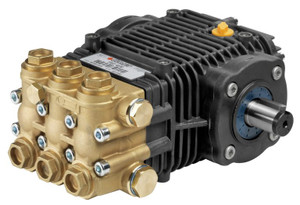

2200 PSI - 15.4 LPM COMET High Pressure Triplex Pump – FW2 Series – Solid, 24 mm Shaft

2200 PSI - 15.4 LPM COMET High Pressure Triplex Pump – FW2 Series – Solid, 24 mm Shaft

SKU:
210 FW24022S
Availability:
Usually Ships within 1-2 Business Days
$1,148.85 (Inc. GST)
$999.00 (Ex. GST)
Weight:
9.00 KGS
Current Stock:
Adding to cart… The item has been added
Description

15.4 L/min @ 2200 PSI
1450 RPM
5.5 HP, 8.8 KG

Features

  • Brass Head
  • Reversible Crankcase for Right or left Hand Mounting
  • Hardened Stainless Steel piston Guides Highly Efficient Stainless Steel Check Valves
  • Solid Ceramic Plungers
  • High & Low Pressure Seals: High Quality Buna-Textile Packings
  • Additional Anti-Extrusion Ring under the Seal
  • Solid Brass Manifolds
  • Special Forged Brass Oversized Connecting Rods
  • Die-Cast, Anodized Aluminum Crankcase
  • Highly Quality Tapered Roller Bearings
  • Optimal Oil Bath for High Speed Operation
  • S 24mm Solid Shaft for Belt Drive, Gearbox or Flex Couplers
  • Nickel plated head available on request
  • Standard versions with p.t.o on right hand side, left side on request.

Specifications

  • Comet Model: 6410 0600
  • Shaft: Solid, 24 mm
  • Speed: 1450 RPM
  • Flow: 15.4 L/min – 4.1 GPM
  • Pressure: 2200 PSI – 152 BAR – 15.2 Mpa
  • Power: 5.5 HP – 4 kW
  • Weight: 8.8 KG – 19.4 lbs
  • Inlet: 1/2″ BSP Female
  • Outlet: 3/8″ BSP Female
  • Head Material: Brass
  • Pump Type: Triplex
