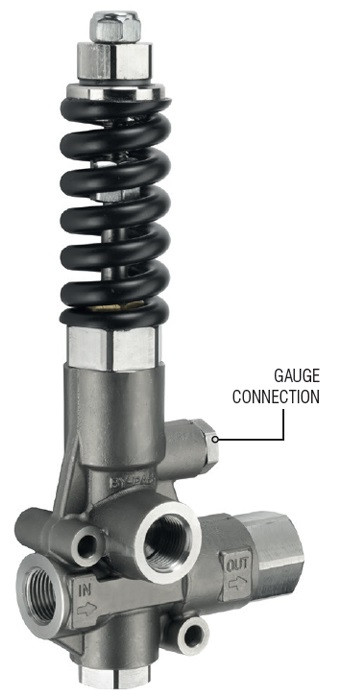

Unloader VHP70 without knob 9280psi

VHP70 Unloader 9,280 PSI
Inlet/Outlet/Bypass G1/2 F
Stainless Steel, Black

VHP70 Unloader 9280 PSI S/S

Features

• Positioning of all O-Ring seals before the threads, for greater mechanical strength.
• New shutter axially guided, for greater stability at high flow rates.
• Stainless Steel seat and shutter of new shape, designed by fluid dynamics study to eliminate instabilities and turbulences with great benefit in terms of long life.
• Stem with new internal anti-rotation system, for greater life.
• Stem O-Ring seal Ø 3,53 (0.14”) is placed fixed on the connecting stem guide to allow the stroke of the Stainless Steel stem on O-Ring, increasing the life.
• Maximum pressure safety lock.
• Minimum and Maximum pressure regulation lock.
• All metallic parts are in stainless steel AISI 303.

Specifications

• Rated pressure: 9,000 PSI
• Permissible pressure: 10,150 PSI
• Max flow: 79.5 L/min
• Rated Temperature: 90°C
• Spring colour: Black
• Inlet/Outlet/Bypass: G1/2 fF
• Weight: 2,150 g
