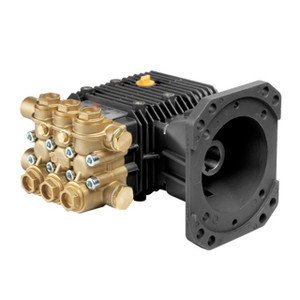

3000 PSI - 13 LPM Comet Pump ZWD-3530G Assembly, 3400RPM

Features

• Brass Head
• Built-in Unloader Valve
• Increased Fin Depth Increases Surface Area to Maximize Heat Dissipation
• Stainless Steel Unitized Check Valves
• Heat-Resistant Solid Ceramic Plungers Operating on Lubricated Packings
• Reinforced Crankcase for Increased Load Capacity
• Enlarged Crankcase Increases Oil Capacity for Better Lubrication and Lower Operating Temperatures
• One-Piece Industrial-Grade Oversized Bronze Connecting Rods
• 1” HOLLOW SHAFT with flange for coupling to petrol engines
• Standard versions with p.t.o on right hand side, left side on request.

Specifications

• Comet Model: ZWD3530G
• Shaft: Hollow, 1″
• Speed: 3,400 RPM
• Flow: 13 L/min – 3.4 GPM
• Pressure: 3,000 PSI – 206 BAR – 24 Mpa
• Power: 7.6 HP – 5.6 kW
• Weight: 7.9 KG – 17.4 lbs
• Inlet: 1/2″ BSP Female
• Outlet: 3/8″ BSP Female
• Head Material: Brass
• Pump Type: Triplex
