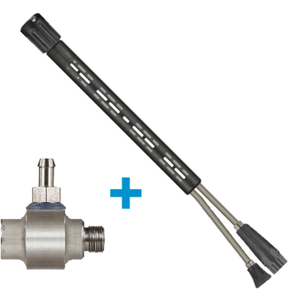

Suttner ST-175 Foam and Clean Lance - 1/4" F & Adj. Foam Injector

SKU:
Suttner ST-175 Foam and Clean Lance
Availability:
Usually Ships within 1-2 Business Days
$0.00 (Inc. GST)
$0.00 (Ex. GST)
Weight:
5.00 KGS
Current Stock:

Items can be sold separately

Foam Lance

Features

  • The change-over lance ST-175 Foam & Clean is the ideal accessory for Suttner's foam injector line. The innovative change-over technology allows to direct the full flow into either one or the other outlet pipe just by turning the hand wheel at the inlet
  • In one position of the hand wheel the flow is directed thru an ST-75 foam head for foaming. After changing over the full flow is directed thru the other pipe and a regular spray nozzle for rinsing
  • Appropriate nozzle sizing at chemical injector and ST-175 allows changing from foaming to rinsing right at the lance. ST -175 Foam & Clean is compatible to ST-160 / ST-160M / ST-164 / ST-166 / ST-167
  • Due to ST-175's changeable air injector nozzles the lance can be driven with all Water Blasters with flow rates from 1 to 6 GPM. Nozzles with integrated jet former are required

Details

  • 1/4″ F.
  • Twin foam lance with vented handle ST-9 380 mm, change-over valve ST-58, nozzle protector ST-10 without nozzle and foam head ST-75 without nozzle.
  • A foam injector is required.
  • Max. 5075psi / 45 l/min / 100 °C



Chemical injector

Hose tail 9 mm : M14 M
Metering valve ST-161 suitable for being refitted in easyfoam365+ injectors (ST-160, ST-166, ST-167 and ST-168)

Max. 5076psi / 90 °C (350bar)
