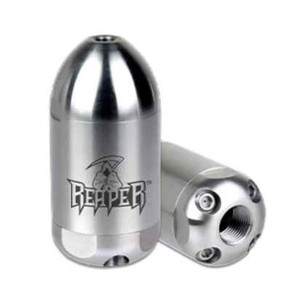

Reaper 1/4" FNPT Rotating Jetting Nozzle - 060

Features

• SUPERIOR PERFORMANCE – The Reaper’s rotating front jet is a 0-degree, straight water stream that blasts at up to 4000 PSI while rotating at an optimal speed to form a 24 & 30º cone of coverage. Optimized stream quality results in greater impingement, allowing you to use one tool for various applications (cutting, cleaning, removal, etc.). Reaper’s four rear jets create a 20-degree angle for maximum thrusting and pulling power.
• DURABILITY & RELIABLE – These heavy-duty, high impact nozzles are constructed with stainless steel housing and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than ceramic nozzles.
• EFFICIENCY – Greater impingement allows you to complete jobs faster and use smaller nozzle sizes while getting the same or better performance as nozzles with higher GPM flow rates.
• SERVICEABILITY – Repair kits are available for extended life and lower operating costs.

Specifications

• Minimum Pressure: 1,500 PSI (103 bar)
• Maximum Pressure: 4,000 PSI (276 bar)
• Flow Chart:
  • 1,500 PSI – 14.0 LPM
  • 2,000 PSI – 15.9 LPM
  • 2,500 PSI – 17.8 LPM
  • 3,000 PSI – 19.7 LPM
  • 3,500 PSI – 21.2 LPM
  • 4,000 PSI – 22.7 LPM
• Maximum Temperature: 82ºC (180ºF)
• Nozzle Size: Variable
• Housing Material: Stainless Steel
• Nozzle Tip & Seat Material: Tungsten Carbide
• Inlet Connection Thread: 1/4″ F NPT
• Front (Rotating) Spray Angle: 24 & 30º
• Rear (Static) Spray Angle: 20º
• Pipe Length: 2-3″
• Dimensions: 55.9 mm H x 30.5 mm W
