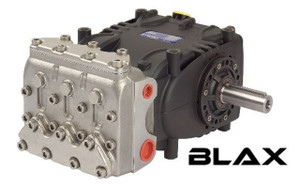

Pratissoli High Pressure Pump KS36 H - 2200RPM (2350 PSI 183 LPM)

Specifications:

• Pressure 2320Psi
• Flow 183 L/min
• Speed
• 1450Rpm R=1:1.25
• 1800Rpm R=1:1.5
• 2200Rpm R=1:1.83
• 76Hp, 56kW

CONSTRUCTION

• High pressure plunger pump, available in 4 versions.
• Patent pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion.
• Low-high pressure packing design with integrated cooling system.
• High volumetric efficiency suction/delivery valves featuring new
spherical design of sealing areas.
• Splash lubrication.
• External gear box available in three ratios and positionable on left
or right side of the pump at 0°-60°-120°-180° from the horizontal
axis (see drawing).
• Available w/o gear box (for direct drive 1200 rpm pulley/belts )

MATERIAL QUALITY

• High resistance light alloy crankcase.
• Stainless steel manifold, nickel treated.
• Tapered roller rim bearings
• Special antifriction light alloy conrods.
• Forged alloy steel crankshaft, hardened, tempered and nitrited.
• Cast iron piston guide, nickel treated.
• Solid ceramic plungers.
• Stainless steel valves.

KS Series DATA SHEET

KS Series Performance Curves
