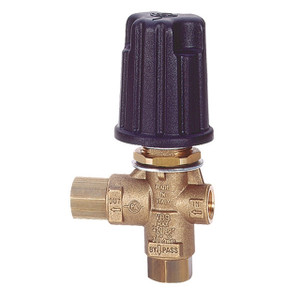

PA VB9 Unloader with knob and micro-switch

• Inlet: 3/8 Bsp F
• Outlet: 3/8 Bsp F
• Bypass: 3/8 Bsp F
• Guage Bolt: 1x 1/4 Bsp F

Common Features
Rated Pressure 220 bar - 22 MPa - 3200 psi
Permissible Pressure 250 bar - 25 MPa - 3650 psi
Rated Flow Rate 30 l/min - 8 USGpm
Rated Temperature 90 °C - 195 °F
Max. Curr. Strenght 6 (2) A
Max. Voltage 250 V
Cable length 1000 mm - 39,4 in
