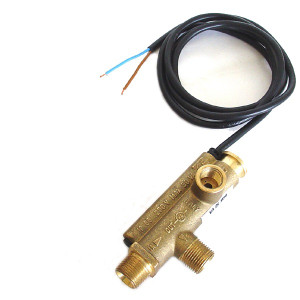

PA Flow Switch FL3 - Flow switch with probe Delrin
$131.10
(Inc. GST)
$114.00
(Ex. GST)
Write a Review
PA Flow Switch FL3 - Flow switch with probe Delrin
Electro-mechanical device in which the fluid passage moves a magnetized piston that opens an electric circuit. DN10 Reed switch with high resistance. Electrical insulation: class IP55 Reduced dimensions both axial and lateral. Magnetic drive obtained by the plunging piston movement. Magnet covered by plastic casing to minimize the braking effect of metal particles and scale. Wire for earth. Also available with Gauge port.
| Common Features | |
|---|---|
| Inlet | 3/8 Bsp M |
| Outlet | 3/8 Bsp M |
| Rated Pressure | 250 bar - 25 MPa - 3650 psi |
| Permissible Pressure | 280 bar - 28 MPa - 4050 psi |
| Rated Flow Rate | 30 l/min - 8 USGpm |
| Level posit.* | 3 l/min - 0,8 USGpm |
| Standing posit.* | 3 l/min - 0,8 USGpm |
| Max. working.Temp | 75 °C - 165 °F |
| Max. Voltage | 230 V |
| Max. Curr. Strenght | 3 A |
| Max.switch capacity | 60 VA |
| Electric cable | 2x0,5 mmq. |
| Cable length | 1250 mm - 49,2 in |
| Electrical insulation | 55 IP |
| Additional Notes | *Minimum operating flow rate |
