LS12 - PA Foamer - Suction through external injector 1.8mm

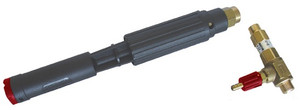

PA LS12 foam lance can work with pressures up to 200 bar and flow rates up to 25 l/min. This foamer is designed to dispense foam by working in combination with professional washing systems. The LS12 foam lance is supplied with an external suction device (injector) that, thanks to the force of the water under pressure, allows to mix water and chemical. The plastic shell of the foamer is equipped with specific holes that allow the air intake thus generating high density foam. The dosage of the chemical can be adjusted by turning the knob positioned at the injector inlet.

Max Flow rate: 10 l/min - 2,6 USGpm

Common Features

• Rated Pressure: 200 bar – 20 MPa – 2900 Psi
• Permissible Pressure: 220 bar –  22 MPa- 3200 Psi
• Rated Temperatur: 60 °C – 140 °F
• Inlet: 1/4 F-3/8 MM Bsp

INDENT ITEM - Allow up to 14 days for delivery
