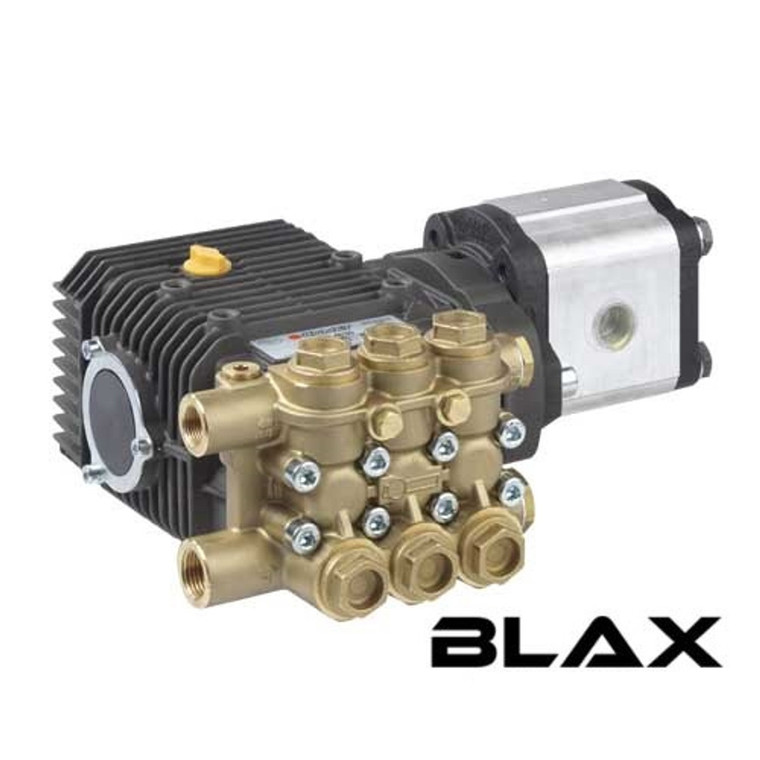

Hydraulic Drive Pressure Pump (2200 PSI 15.1 LPM)

Italian Manufactured Motor Pump Units

GROUP 2 Hydraulic Engine (20 cc)

• Brass Pump Head
• Reversible Crankcase for Right or left Hand Mounting
• Hardened Stainless Steel piston Guides Highly Efficient Stainless Steel Check Valves
• Solid Ceramic Plungers
• High & Low Pressure Seals: High Quality Buna-Textile Packings
• Additional Anti-Extrusion Ring under the Seal
• Solid Brass Manifolds
• Special Forged Brass Oversized Connecting Rods
• Die-Cast, Anodized Aluminum Crankcase
• Highly Quality Tapered Roller Bearings
• Optimal Oil Bath for High Speed Operation

PRESSURE WASHER

• 2200 PSI
• 15.1L/min
• 1450RPM
• 5kW
• 15.4Kg

HYDRAULIC MOTOR

• 20CC
• 29.6 L/min (7.8 US gpm)
• 1704 psi (117.5 bar)

Ideal for use in confined or spark free areas where petrol engines / electric motors cannot be used.

Units can be fitted directly to trucks and machines that have a hydraulic drive.

Use on equipment such as:

• garbage trucks
• cement mixers
• skip loaders
• tractors

DATASHEET & HYDRAULIC REQUIREMENTS

FW PUMP PARTS/DATASHEET
