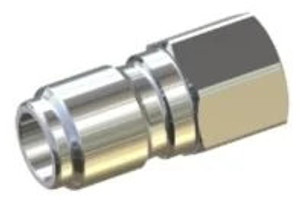

ARS178 L Plug 3/8" BSP Female

50 L/min Flow
1,825 PSI Pressure

Features

• Quick Connect Plug
• ARS 178 L Type
• Viton Seals
• Designed for the food industry

Specifications

• Inlet: Variable
• Outlet: Quick Connect Plug
• Working Flow: 50 L/min
• Working Pressure: 1,825 PSI
• Maximum Pressure: 2,025 PSI
• Working Temperature: 90°C
• Pin Diameter: 17.8 mm
• Internal Hole Diameter: 12 mm
• Material – Body: Stainless Steel
• Material – Pin: Stainless Aisi 430 Tempered

Performance Note

• These items are constructed in Aisi 420 Stainless Steel, as this grade is “a hard steel”, and favoured for quick-release coupler pins to prevent the balls of the quick-release coupler from damaging the surface of the pin and causing it to seize in the long run.
• Note the option, Aisi 316, is more resistant to aggressive chemicals such as Chlorine, but as a “soft” Stainless, cannot be hardened.
• As a result, please consider this series as food grade, and not resistant to aggressive fluids.
