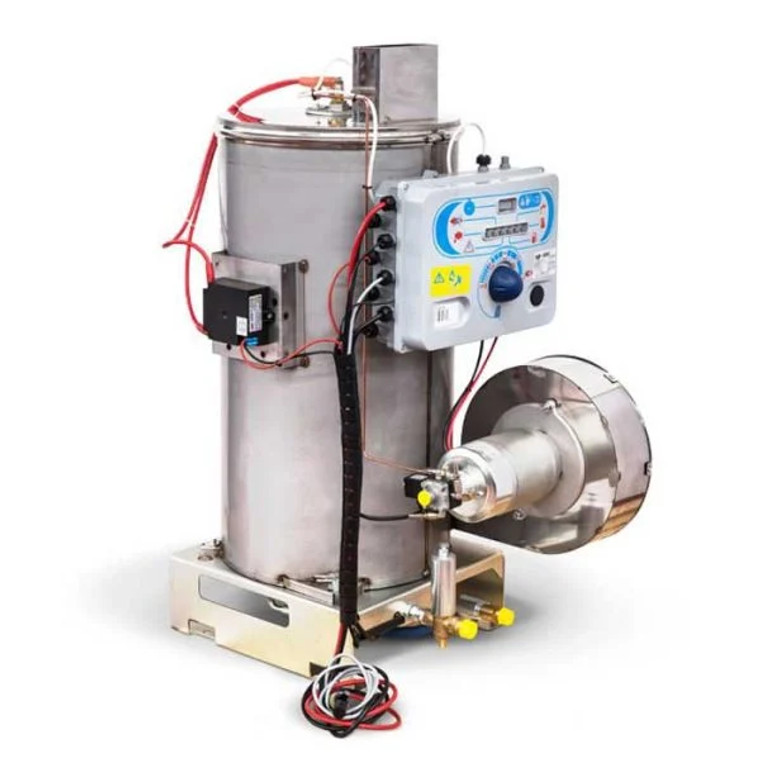

3625 PSI - 25 LPM Boiler Assembly with Panel

Boiler Assembly C/W Panel
Features
Small Boiler Assembly with Electrical Panel
Also known as: BOILER C3 12 V + Panel
Specifications:
12 V DC Electrovalve
12 V Motor
5075 psi Max Pressure
25 L/min Max Flow Rate
35 m Coil Length
3/8″ Coil Diameter
2.25 Nozzle
90°C Max
Consumption:

90,000 kcal/h
8.31 kg/h
Additional Information:
DIESEL BOILER 15-20-25-30

Structure made of stainless steel
The bottom of boiler is made from compressed fired ceramic fiber
FLAME GROUP

Diesel nozzle
Ignition electrodes
Copper diesel pipe
Support for flame control
DIESEL PUMP

Solenoid valve
TRANSFORMER

2 X 5000 V complete with cables connection (400 V)
2 X 14000 V complete with cables connection (220 V)
MOTOR FAN

Aluminum
IP 44, 230 – 400 V, 50 – 60 Hz, 2800 – 3200 RPM
Electrical box complete with:

Frame control
Flow switch
Level switch
Thermostat
Pressure switch
Contactor
Hour counter display and LED lights alert
Safety valve (500 bar optional)
