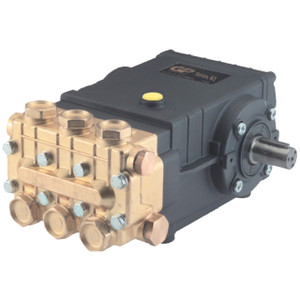

3500PSI - 21LPM General Pump TS2021, 1450RPM

47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD

Features:

The preferred pump frame in the pressure cleaning industry
Forged, nickel-plated, brass manifold with an exclusive lifetime warranty
Large-capacity, die-cast, anodized aluminum oil-bath crankcase
Over-sized connecting rods for maximum life
Heavy-duty tapered roller bearing
Solid ceramic plungers with continuously lubricated packings
Unitized stainless steel inlet and discharge valves

Specifications:

Maximum Volume: 20.46 / 25.46 L/min
Maximum Discharge Pressure: 3500 PSI
Maximum Pump Speed: 1125 / 1450 RPM
Maximum Inlet Pressure: 125 PSI
Maximum Inlet Vacuum: 9 ft. water (7.9 Hg)
Maximum Fluid Temperature: 74°C
Plunger Bore (in / mm): 0.787 / 20
Plunger Stroke (in / mm): 0.630 / 16
Crankcase Oil Capacity: 40.6 oz
Pump Inlet Port Thread:1/2-14 BSPP-F
Unloader Inlet Port Thread: 1/2-14 BSPP-F
Pump Discharge Port Thread: 3/8-19 BSPP-F
Hollow Shaft I.D.: 0.945 in. / 24 mm
Weight: 14.51 KG
Dimensions: 12.2” x 9.2” x 6.9”
