2465 PSI - 43 LPM Hawk Pump - XLT4317IL

XLT Series
There are two types of XLTI pumps: the first type can operate at a maximum pressure of 300 bar and with water temperatures up to 65°C (149F).
This category is particularly suited for fitting on professional high-pressure washers or on small goods vehicles that have to do very challenging cleaning jobs, exploiting its superior performance in terms of pressure.
The second type can operate at a maximum pressure of 170 bar, with flow rates up to 54 lpm, and water temperatures up to 65°C (149F).
This category offers a superior performance in terms of flow rate and is suitable for fitting on automatic gantry-style car washes, on small goods vehicles for municipal cleaning services, or misting systems or fire extinguishing systems.

Specifications
Series: XLT
Max Pressure: 2,465 PSI
Flow Rate: 43 L/min
Speed: 1,450 RPM
Power: 19.1 HP
Inlet: 3/4″ BSP
Outlet: 1/2″ BSP
Oil Capacity: 1.2 L
Temperature: 65°C
Weight: 17.8 kg

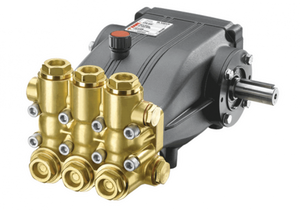

NOTE: R version shown
